Sales unit :  by the unit
Packaging dimensions and weight
   Weight   :  1.875 g
   Height  :  60 mm
   Length  :  1.300 mm
   Width  :  250 mm
   Volume  :  19.500 cm3
Adlock stainless steel lever handles with or without lock
single push-type floor lock system Ø25, height 1225 mm

Click the image to enlarge it or HERE

70781M

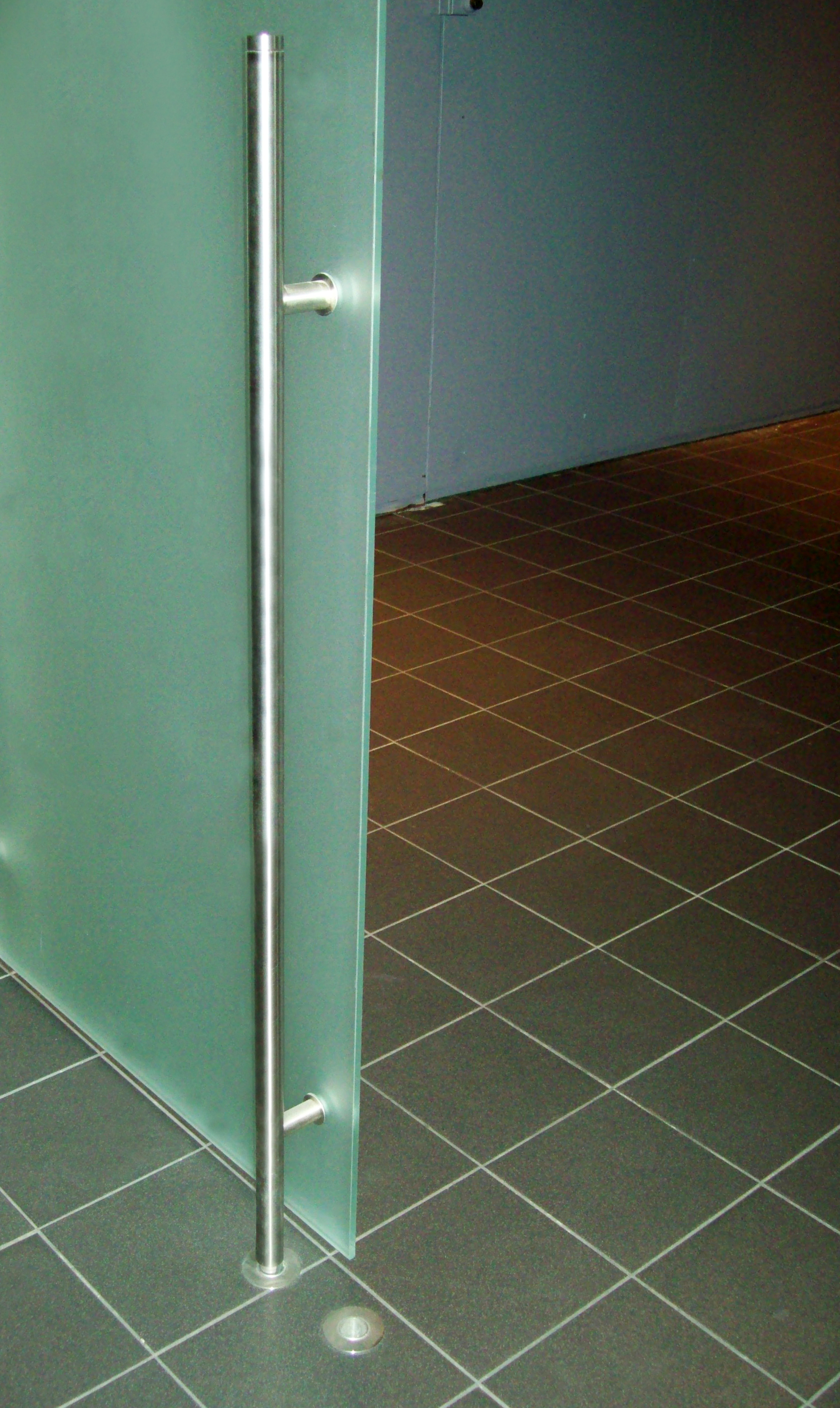

single push-type floor lock system Ø25, height 1225 mm

ADLOCK push-type floor lock system for 6 to 16 mm thick glass (very easily adapted to all thicknesses). Ideal for locking folding partitions (see 601) or combined with a built-in lock on a double door system. Delivered with 1 Ø25 x32 strike to be secured with mortar or glue. Finish: Brushed stainless steel, supplement for "mirror polished" finish, order 70757L.

Attention  To order or ask for a quotation go first to "Customer area"

Associated items list
Bandeau vert clair

Adlock stainless steel lever handles with or without lock :
The Adlock handles are available as standard up to 6 m high, diameter 20 to 45 mm, in polished or brushed stainless steel, with the required number of spacers. Optimised, patented construction principles. A must: the security lock integrated at human height in the inner tube which latches the door at 2 points, top and bottom, without requiring force. Available from stock or short lead time for manufacture.
