CUSTOM HANDLES

	Ø 25		Ø 30		Ø 40
Custom handles	A	B	A	B	A	B
<= 350 mm	70700Y	70705D	70710K	70715Q	70730G	707 35M
<= 950 mm	70701Z	70706F	70711L	70716R	70731H	70736N
<= 1950 mm	70702A	70707G	70712M	70717S	70732J	70737P
<= 2950 mm	70703B	70708H	70713N	70718T	70733K	70738Q
<= 6000 mm	70704C	70709J	70714P	70719U	70734L	70739R
Handles in stock	Ø drilling	mark	For glass 6 to 16 mm		For glass 8 mm
			Ø 20 Bss	Ø 25 BSS	20 PSS
Length 300 mm Spacing 200 mm	14	B	70767W
Lengthr 500 mm Spacing 300 mm	14	B		70787T
Length 1000 mm Spacing 600 mm	14	B		70780U
Length 320 mm Spacing 300 mm	10	E	Single vertical handle		70518A
Length 520 mm Spacing 500 mm	10	E	Horizontal single handle		70519B

Accessories for simple handles for transforming a single handle 707 into a handle-knob ideal for sliding doors (see 601). The button or the bowl are positioned on the fixed glass side. The stick handle can thus be mounted vertically or horizontally on the other side of the door.
Button Ø30 x40 in brushed stainless steel with threaded rod M8x50 and clear plastic wedge.	C	70765U
Button Ø40xØ30x6.5 with threaded rod M8x30 and clear plastic wedge.	D	70766V
HANDLE OPTIONS

		Simple	Double
Mirror polished stainless steel		70757L	70756K
Additional spacers	Ø 25	70750C	70751D
	Ø 30	70752F	70753G
	Ø 35	70754H	70755J
If handle > to 2.40 m
Retractable latch		70874N	Spacing> 800 mm
DOOR OPTIONS
Thick door	70800H	If glass thickness > 16 mm
For wood or aluminum door
High door	70801J	If 6000 > glass > 3000 mm
Retractable latch	70804M
GLASS OPTIONS
Tempered laminated glass	70808R	Valide for all Ø handles
Laminated glass unhardened	70807Q

Attention consult ADLER sas if the number PVB layer exceeds half of the thickness of a glass in mm
Ratio TH.PVB > 0.2 mm consult Adler ________________ th. thinner glass

HANDLES WITH INTEGRATED LOCK
ADLOCK handles with integrated lock offer highly aesthetic, ergonomic and tailor-made solutions for locking glass doors from 8 to 16mm (office buildings, healthcare facilities, shops, school premises, collective dwellings, museums, verandas, interior fittings , Etc.). These handles can be simply adapted, on request, for doors of any thickness (eg 40mm aluminum or wood). Sprocket / rack mechanism designed and patented by ADLER suitable for handles sticks from 25mm in diameter. Smooth operation and self-locking at the end of the closing stroke. In standard outer safety cylinder and inner knob. Any other configuration on request.
These handles are made to measure and in short time, as standard in brushed or polished stainless steel. Also available on request for heights up to 6m or other materials, finishes or shapes. Supplied with TECYC-ADLER safety cylinders (3 keys as standard) or KESO 2000 S Ω (patented key). Varied keys by default, keys on opening or flow charts on request. Supplied with 1 Ø25 x32 striker for 1-point locking handles and 2 locking strips for 2 closing points.

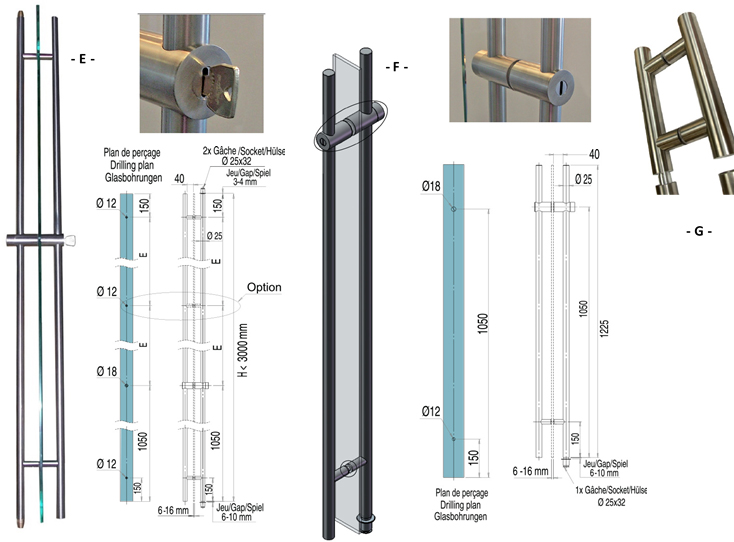

HANDLES INTEGRATED DOUBLE LOCK
CylindER/button	Mark	BSS Ø 25	BSS Ø 25	BSS Ø45
Any height : custom	E	70770Z	70772B
1/2 height	F	70775F
Striker for glass transom	G	70762R	70763S	70764T
CYLINDER STANDARD TECYC-ADLER
Cylinder with 3 keys	70610A		Model interchangeable with KESO 200S Ω
Additional key provided with handle	70611B		on request
Key after sale service	70612C		Provided the security card or copy
Cylinder ASS without key	70613D
CYLINDER OPTIONS
Patented KESO 2000S Ω cylinder	70760P		Supplied with 3 keys + security card - différent combinations. from 2 and more : same combination on request
Additional key	70672T		Available from the commercial document
ASS key + 3 clés	70668P		Provided the security card or copy
Customer service	70675W

HANDLE OPTIONS
		Simple	double
Mirror polished stainless steel		70757L	70756K
Additional spacers	Ø25	70750C	70751D
	Ø30	70752F	70753G
	Ø35	70754H if glass thickness > 2.40 m	70755J
Reinforced Strong Spacers		70874N
Ground striker		70761Q

DOOR OPTIONS
Thick door BSS finish	70800H	If glass thickness > 16mm
Wooden or aluminium door
High door	70801J	If 6000 > glass > 3000mm
Retractabke latch	70804M
GLASS OPTIONS
Tempered laminated glass	70808R	Valid for all Ø of handles thickness limited to the ratio below
Laminated glass unhardened	70807Q
Attention consult ADLER sas if the number PVB layer exceeds half of the thickness of a glass in mm Ratio TH.PVB > 0.2 mm consult Adler ________________ th. thinner glass

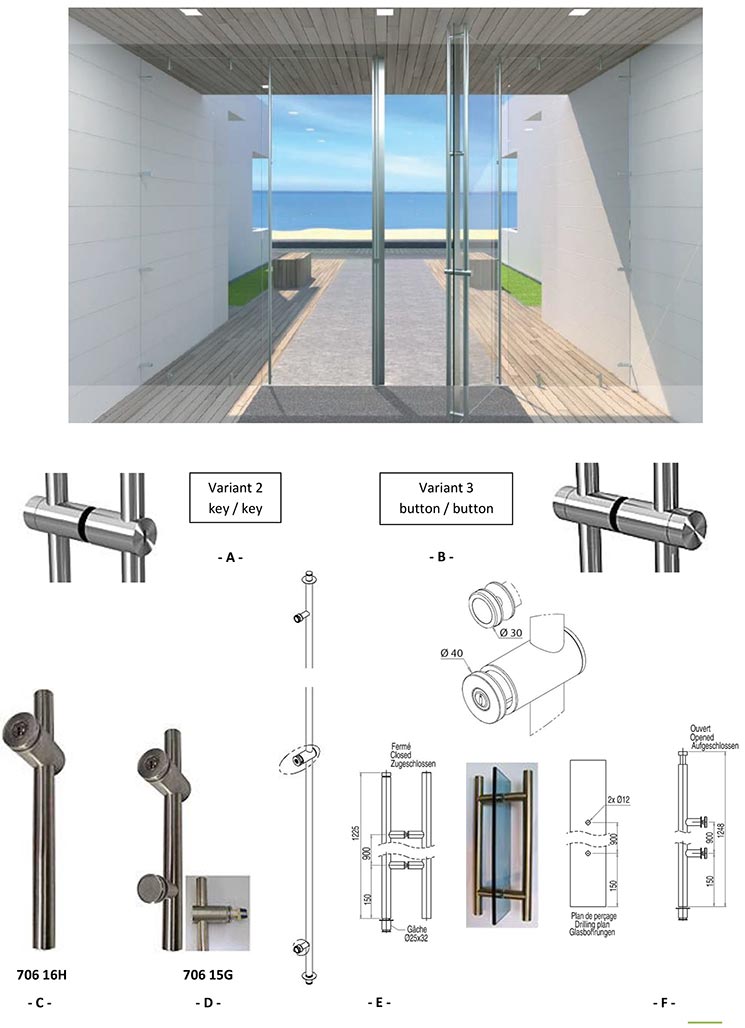

ORGANIZATIONAL + PASSE PARTOUT
With cylinder TECYC	70610A	On request

	Mark	Simple Ø25	Double Ø25	BSS
Cylinder/cylinder
Any height	A		70868G	2 closing point - custom
1/2 height	A		70869H	1 closing point
Cylinder/cylinder
Any height	B		70769Y	2 closing point - custom
1/2 height	B		70768X	1 closing point
Outside cylinder
Any height	C	70616H		2 closing point - custom
1/2 height	D	70615G		1 closing point
Inner side cylinder
Any height	E	70785R		2 closing point - custom
1/2 height		70786S		1 closing point
Height 500mm		70780L	70782N	1 closing point on the ground
Height 1225mm	F	70781M	70783P
