| FACADE PARTITION SYSTEMS |
| The 3 models below illustrate a part of the possible variants of SECURITRACK sliding door installation. All using vertical tracks to : 1) to hide the defects of squareness of furniture 2) to secure the closure of the window against the hooking and bending of the doors 3) to protect the window of dust with eyelashes PVC joints. |
| |
Classical assembly of Securitrack flushed lock in the shoe section |
Main entrance secured
by breast high lock |
 |
 |
A cable free system with electromagnetic lock
Securitrack implements several fast Adler® mechanical and electromagnetic locking solutions always miniaturized, even invisible and very secure.
|
|
| Vertical profil showing adjustment with lower track |
| |
Vertical profile with seals => |
| |
|
|

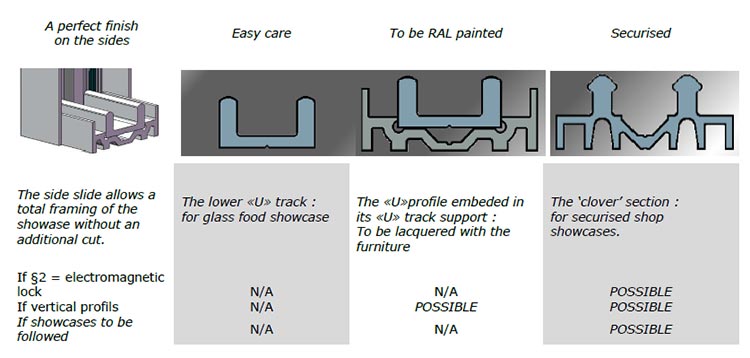

| CHOOSING THE RIGHT TRACK |
 |
Gas
| Profils |
Lenght. |
Natural anodized |
Sale unit |
Lenght |
BSS |
PSS |
GSS |
S.U. |
| Upper profile |
|
4m20 |
|
PCE |
2m80 |
|
|
|
PCE |
|
pack of 12 |
|
|
|
|
| Sliding profile |
|
|
PCE |
|
|
|
PCE |
|
pack of 12 |
|
|
|
|
| Security track |
|
|
PCE |
|
|
|
PCE |
|
pack of 16 |
|
|
|
|
| Lower 'U' track |
|
|
PCE |
|
|
|
PCE |
|
pack of 16 |
|
|
|
|
| Support for 'U' track |
|
|
PCE |
|
|
|
|
|
pack of |
2m95 |
4m |
2m90 |
|
| Guiding profil PVC |
|
2m |
|
PCE |
For shoe section mounted on « U » track 60380G |
| Vertical side profile |
|
|
|
PCE |
|
|
|
|
PCE |
|
|
pack of 16 |
|
|
|
|
|
| Seal for vertical profile |
|
au m PVC |
|
Profile silicone used for sealing window and soft closing door stop |
| Gasket seal |
|
1m50 |
|
For simple construction with 6 mm glass |
| Gasket seal |
|
2m50 |
|
| * On request 1m45 |
|
|
|
|
|
|
|
|
| CHOOSING THE RIGHT LOCK (END SECTION) |
|
SELECTION OF ACCESSORIES FOR EACH CASE
|
Accessories |
Matt
chromed |
|
comments |
BSS |
PSS |
GSS |
S.U. |

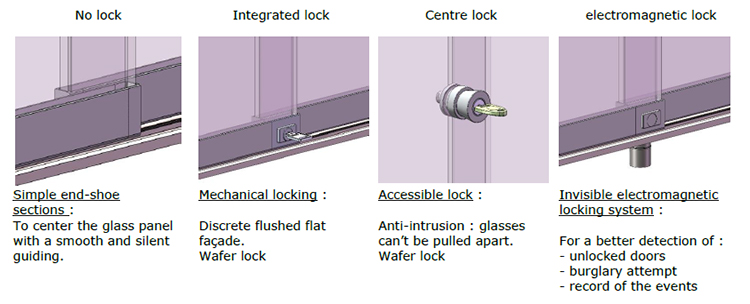

Set of shoe-end |
|
|
|
|
|
|
|
x 4 |
| Silent guiding. Avoid glass from sliding in the profile. Built in plastic stopper. |
Kit end-parts locker |
|
|
|
same key |
|
|
|
x 1 |
|
|
different key |
|
|
|
x 1 |
Key n°1 |
|
|
|
On request n° 2 and 3 |
x 1 |
| All the benefits of simple tips 60340N – 60347V – 60349X – 60348W with a miniaturized lock patented by Adler for an aesthetic and ergonomic façade --> no protrusion |
Safety lock 90° |
|
Perçage Ø26-28 |
|
same key |
|
|
|
x 1 |
|
different key |
|
|
|
x 1 |
Key n°11 |
|
|
|
On request key n°12 to 15 |
x 1 |
Electromagnetic lock |
|
|
|
|
|
|
|
x 1 |
Ratchet lock |
|
|
|
same key |
|
|
|
x 1 |
Vibration damper |
|
|
|
|
|
|
|
x 1 |
| A unique model of anti-rattle clip on 6,8,44.2 glass. Guidance in the upper porfile being dissociated from the tightening of the clamp remains perfect whatever fluctuations of glass thickness.
|
| Accssories |
Natural anodized |
comments |
S.U. |
| Nylon roller |
 |
|
A unique roller for a smooth movement. High load capacity. No track profile wear. |
x 1 |

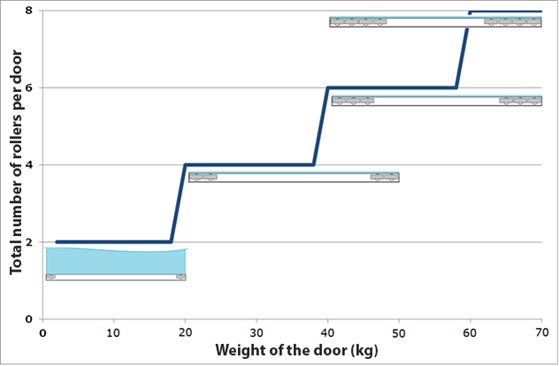

| For maximum stability, the rollers must be distributed to each of the 2 ends of the profile (no roller in the middle) |
|
| Track stop |
 |
|
To be used with a 'clover' section |
x 1 |
| |
|
|
|
|
| Track stop with latch |
 |
|
To be used with a 'clover' section |
x 1 |
ROLLER TRACK SYSTEMS WITH 3 OR MORE SLIDING DOORS
|
Assemblage 1 |
|
Assemblage 2 |
|
Example |
|
ACCESSORIES : ORDINARY SOLUTIONS
|
| Accessories |
|
Natural anodized |
comments |
Nickel |
PSS |
GSS |
S.U. |
| Simple shoe-end |
 |
|
|
|
|
|
x 1 |
| Reversible mechanical lock |
 |
|
same key |
|
|
|
x 1 |
| |
different key |
|
|
|
| Simple lock |
 |
|
different key |
|
|
|
x 1 |
| Ratchet lock |
 |
|
same key |
|
|
|
x 1 |
| |
|
|
|
|
|
|
|
| |
|
|
|
Chromed |
Silver |
Gilded |
S..U |
|
 |
rectangular |
self-adhesive |
|
|
|
x 10 |
| Finger pull handle |
 |
ronund |
self-adhesive |
|
|
|
x 10 |
KIT SECURITRACK 3 FINISHES
|
| Upper profile |
|
|
| Sliding profile |
|
| Security track |
|
| Kit end-parts locker |
|
| Self-adhesive finger pull tabs |
|
| Gasket seal |
|
Lenght |
Natural anodized |
BSS |
Anodisé doré |
1m45 |
|
|
|
1m38 |
|
|
|
| |
ANOTHER ASSEMBLY : DOUBLE RAIL AND SHOE PROFILE |
 |
|
|
