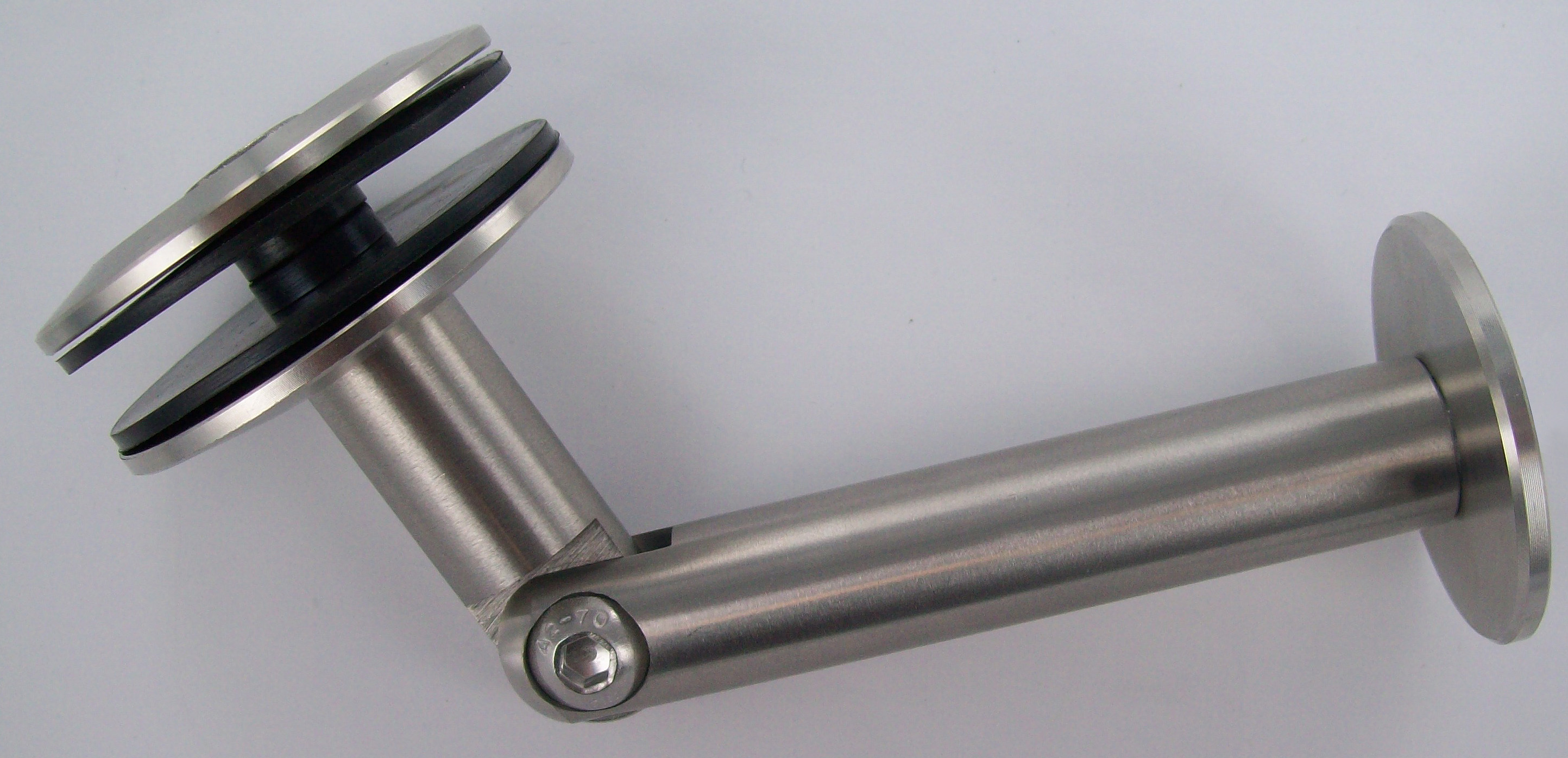

INOVAGLAS canopy - wall/glass connection with spacer

Ø 60 mm wall/glass connecting part with spacer to attach to M12 bolt. The connecting parts are supplied with standard screws for thicknesses between 10 and 16 mm. (Please mention at the time of order if the glass is thicker).
By using pivoting joints the glass canopies can be inclined at angles between +/- 12°.

The metal parts are made of AISI 304 stainless steel. Technically no maintenance is required. If necessary, they can be cleaned with a soft and moist rag. However, the parts installed outside may show signs of rust which are in fact deposits. This oxide dust and other stubborn deposits can be removed with chlorine-free cleaning products. Do not use scouring products which will scratch the surface and provide a more favourable surface for these deposits. See the cleaning and protective products for stainless steel, product family 361. If stainless steel elements are used in coastal areas or near pools, we recommend using polished surfaces and AISI 316 stainless steel.
