| Sales unit | : | by the unit |
| Packaging dimensions and weight | ||
| Weight | : | 3.778 g |
| Height | : | 111 mm |
| Length | : | 90 mm |
| Width | : | 290 mm |
| Volume | : | 2.871 cm3 |
)

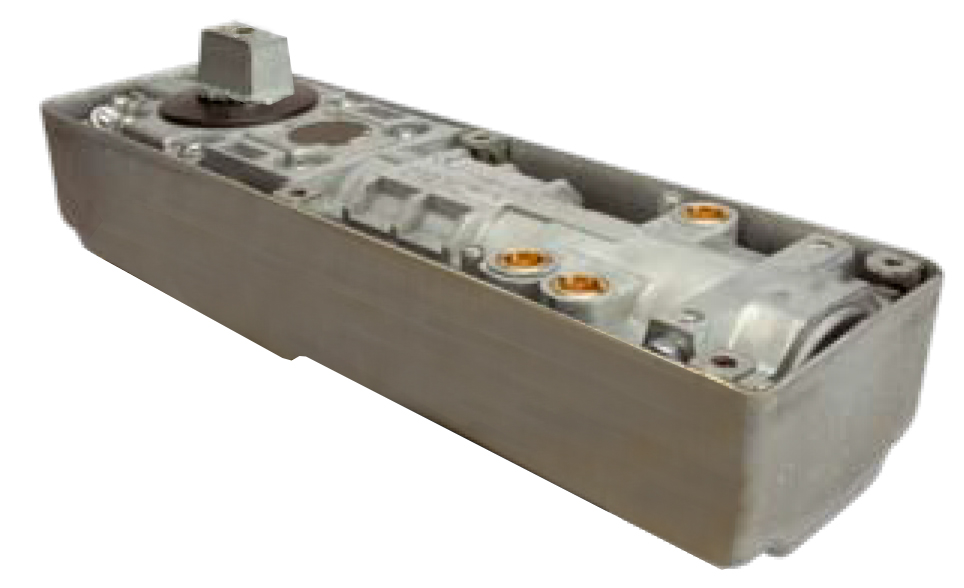

Click the image to enlarge it or HERE
73068X
door pivot Janus+ F3 stop at 90°
"Janus+" multiple-use floor pivot. Stop at 90°. Dual action: 180° in both directions; for door (up to 150 kg) opening to the right or left or a swing door. 3 speed settings for closing:
- from 180° to 70°, with possibility of delayed closing,
- from 70° to 15°, normal setting,
- from 15° to 0°, end-of-travel setting.
Heat-stable braking at -20°C to +40°C. Extra-flat: 55 mm. Removable rectangular axis; extension end available on request.
L: 273 ; w: 85 ; h: 55 mm
- from 180° to 70°, with possibility of delayed closing,
- from 70° to 15°, normal setting,
- from 15° to 0°, end-of-travel setting.
Heat-stable braking at -20°C to +40°C. Extra-flat: 55 mm. Removable rectangular axis; extension end available on request.
L: 273 ; w: 85 ; h: 55 mm
Attention To order or ask for a quotation go first to "Customer area"
Associated items list
|
73070Z door pivot "Janus+" F3 stop at 90° square axis / 73075F cover for "Janus+"&"Minos+" floor pivot polished stainless steel / |
