| Sales unit | : | by the unit |
| Packaging dimensions and weight | ||
| Weight | : | 3.785 g |
| Height | : | 60 mm |
| Length | : | 310 mm |
| Width | : | 90 mm |
| Volume | : | 1.674 cm3 |
)
Click the image to enlarge it or HERE
73064T

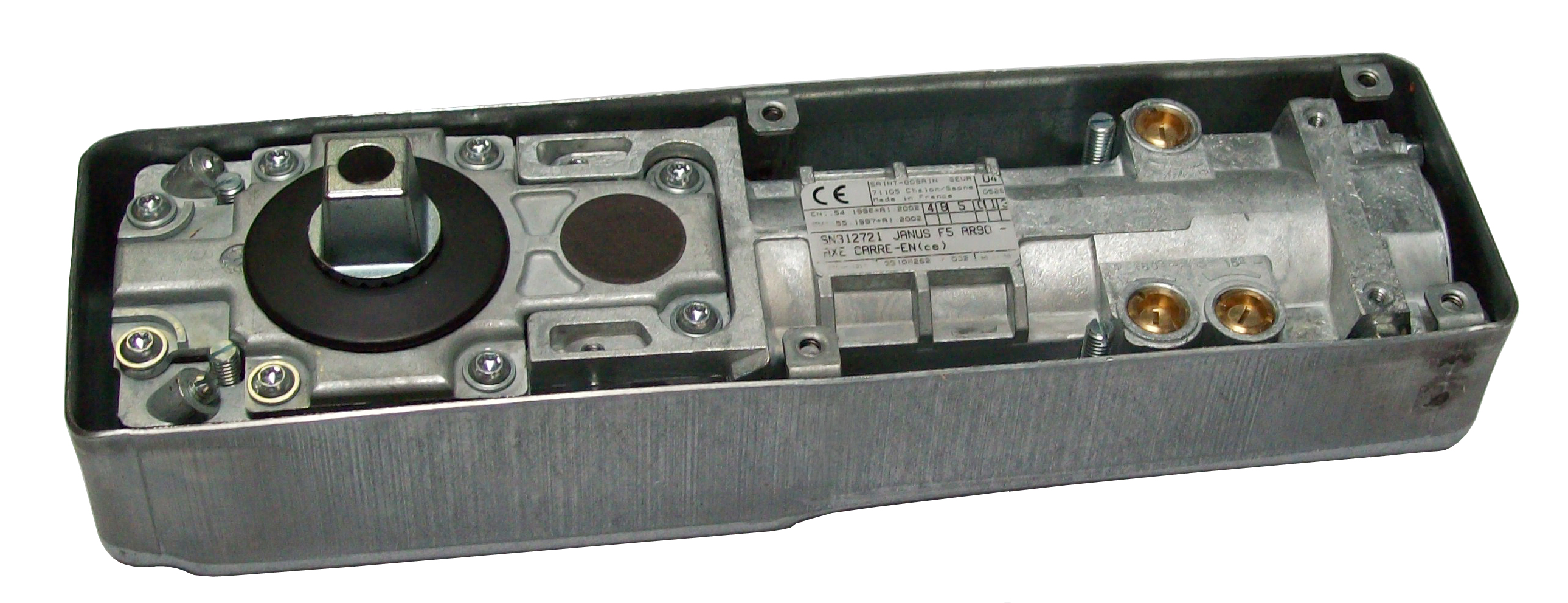

door pivot Janus F5, stop at 90°
"Janus" multiple-use floor pivot. Stop at 90° (with delivery time). Dual action: 180° in both directions; for door (up to 120 kg) opening to the right or left or a swing door.
3 speed settings for closing:
- from 180° to 70°, with possibility of delayed closing,
- from 70° to 15°, normal setting,
- from 15° to 0°, end-of-travel setting.
Heat-stable braking at -20°C to +40°C. Extra-flat: 55 mm. Narrow casing (77 mm). Removable square shaft (rectangular shaft on request).Extension end available on request. Adjustable mechanism in the bedded casing: 6 mm long and wide and 4 mm high. L: 273 ; w: 77 ; h: 50 mm.
3 speed settings for closing:
- from 180° to 70°, with possibility of delayed closing,
- from 70° to 15°, normal setting,
- from 15° to 0°, end-of-travel setting.
Heat-stable braking at -20°C to +40°C. Extra-flat: 55 mm. Narrow casing (77 mm). Removable square shaft (rectangular shaft on request).Extension end available on request. Adjustable mechanism in the bedded casing: 6 mm long and wide and 4 mm high. L: 273 ; w: 77 ; h: 50 mm.
