| Sales unit | : | by the unit |
| Packaging dimensions and weight | ||
| Weight | : | 6.390 g |
| Height | : | 95 mm |
| Length | : | 350 mm |
| Width | : | 150 mm |
| Volume | : | 4.988 cm3 |
)
Click the image to enlarge it or HERE

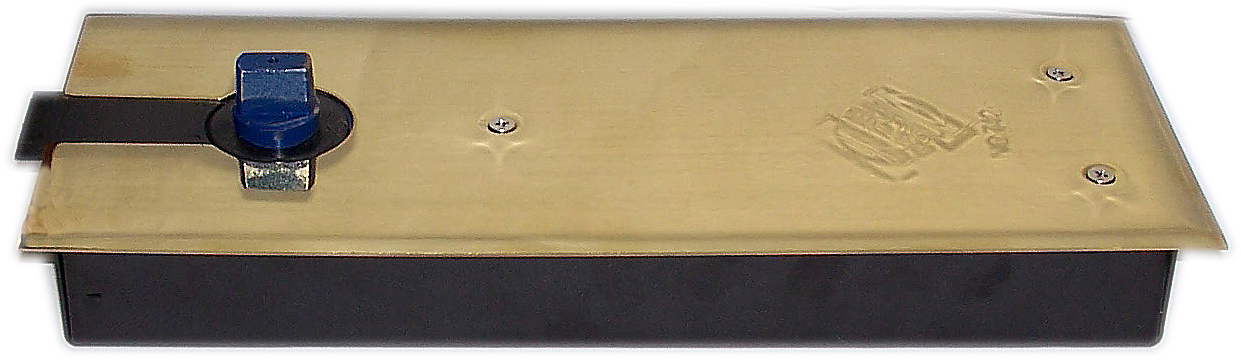

72957B
door closer with rectangular section, gold plated
Floor spring with rectangular section pin. Double action +/- 130° with hold open +/- 90°.
Closing force : 25Nm
2 valves for closing speed adjustment 130°-0° and 130°-20°
Ajustable mechanism in the cement box.
Lenght: 7 mm
Width: 10 mm
height: 4 mm
Size of cement box : 310 x 110 x 40
Weight: 5 kg
Tested from CETIM according to a part of European norm EN 1154/A1
Supplied with covering plate in brushed stainless steel with golden finish 324 x 130 mm
Supplied with installation kit for wood or metal doors.
Best performance with outdoor temperature between - 10° to + 40°C
Closing force : 25Nm
2 valves for closing speed adjustment 130°-0° and 130°-20°
Ajustable mechanism in the cement box.
Lenght: 7 mm
Width: 10 mm
height: 4 mm
Size of cement box : 310 x 110 x 40
Weight: 5 kg
Tested from CETIM according to a part of European norm EN 1154/A1
Supplied with covering plate in brushed stainless steel with golden finish 324 x 130 mm
Supplied with installation kit for wood or metal doors.
Best performance with outdoor temperature between - 10° to + 40°C
Attention To order or ask for a quotation go first to "Customer area"
