| Sales unit | : | set of 2 |
| Packaging dimensions and weight | ||
| Weight | : | 2.990 g |
| Height | : | 70 mm |
| Length | : | 275 mm |
| Width | : | 170 mm |
| Volume | : | 3.273 cm3 |
)
Click the image to enlarge it or HERE

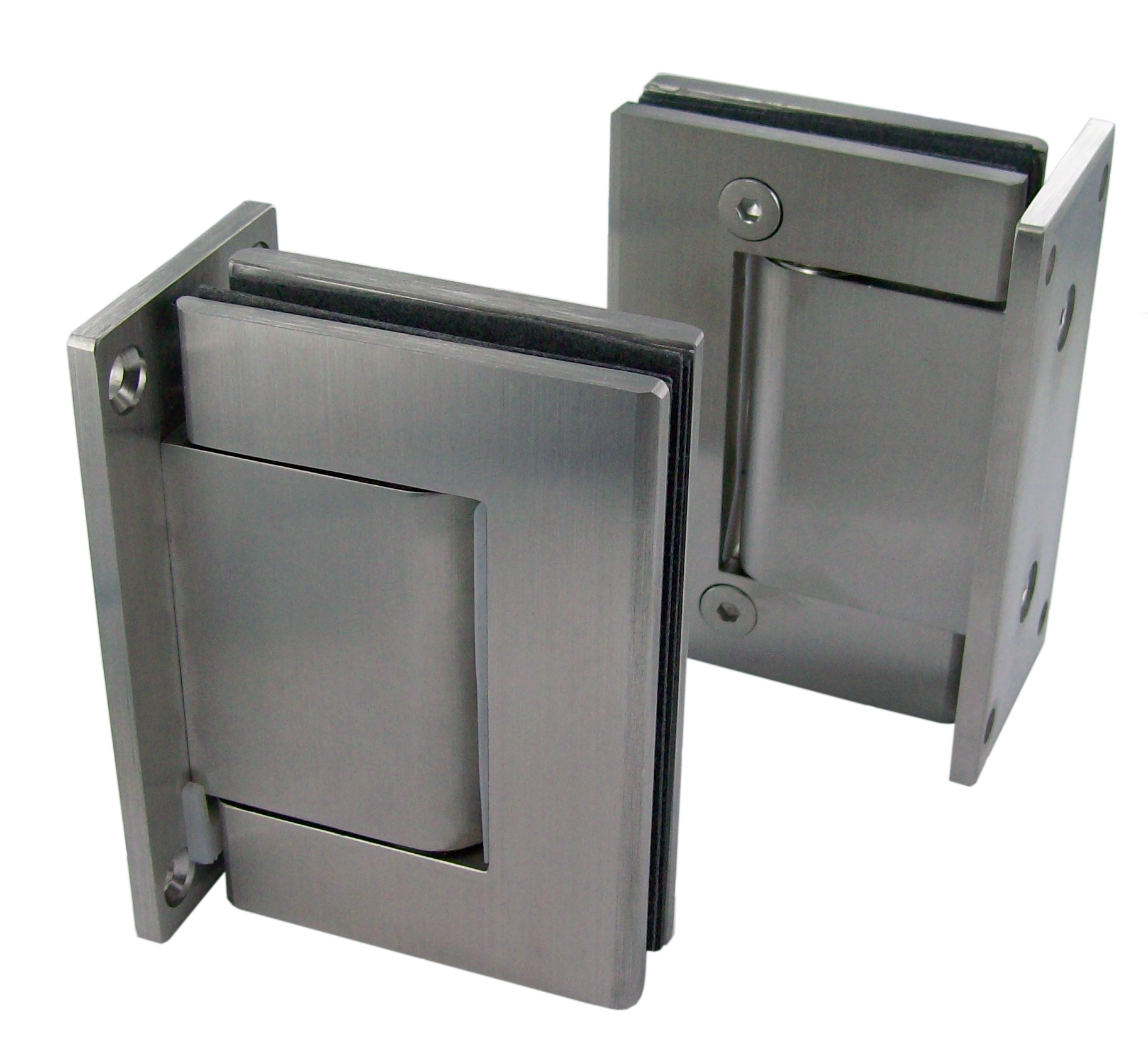

hinge A.S. x2 wall/glass x2 satin stainless
wall to glass fixing 90°
Suitable for 10-15 mm tempered glass
Maximum door leaf weight : < 65kg
Maximum door leaf width : <1000 mm
Maximum door leaf height : <2400 mm
Self-closing when door is closed to 85°
Double action, maximum door open angle : 95°
Hold-open at 90°
Tested according to EN1154 (100,000 cycles)
2 sets of plastic shims : 1.3 mm flat gaskets and 2 mm slant gaskets
