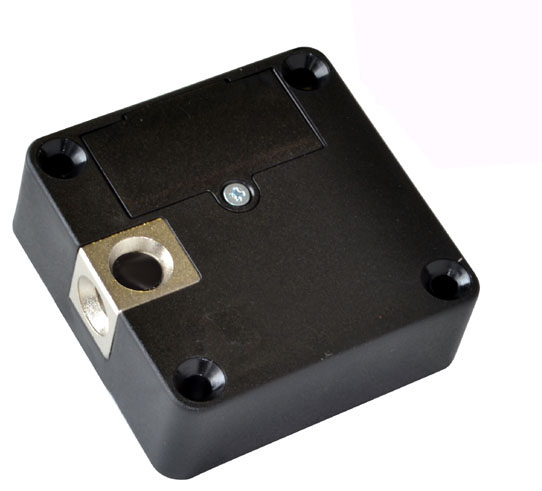

electronic cabinet lock

An electronic cabinet lock for either side or frontal bolt locking. Electric motor powered by a 3V lithium battery (ref. 64356C) for 30,000 opening operations or 3.6V-0.5A power supply (ref. 63466P). Opened by RFID badge. Built-in RFID antenna. Max. detection range: 20 mm (through wood, glass, plastic, leather but NOT METAL). Optional remote antennas are available. Validation or invalidation of RFID opening badges after presenting a programming badge (max. 49 opening badges per electronic lock). A programming badge can easily be saved in the system's memory. Very easy to use on all types of installations. Can be mounted on the mobile part (sliding, swing-type door or drawer) or the fixed part of the cabinet by screws (see 64369S) or glue. Simultaneous opening of several strikes with a single antenna is possible. Software functions are updated without a PC by simply presenting specific RFID cards.
