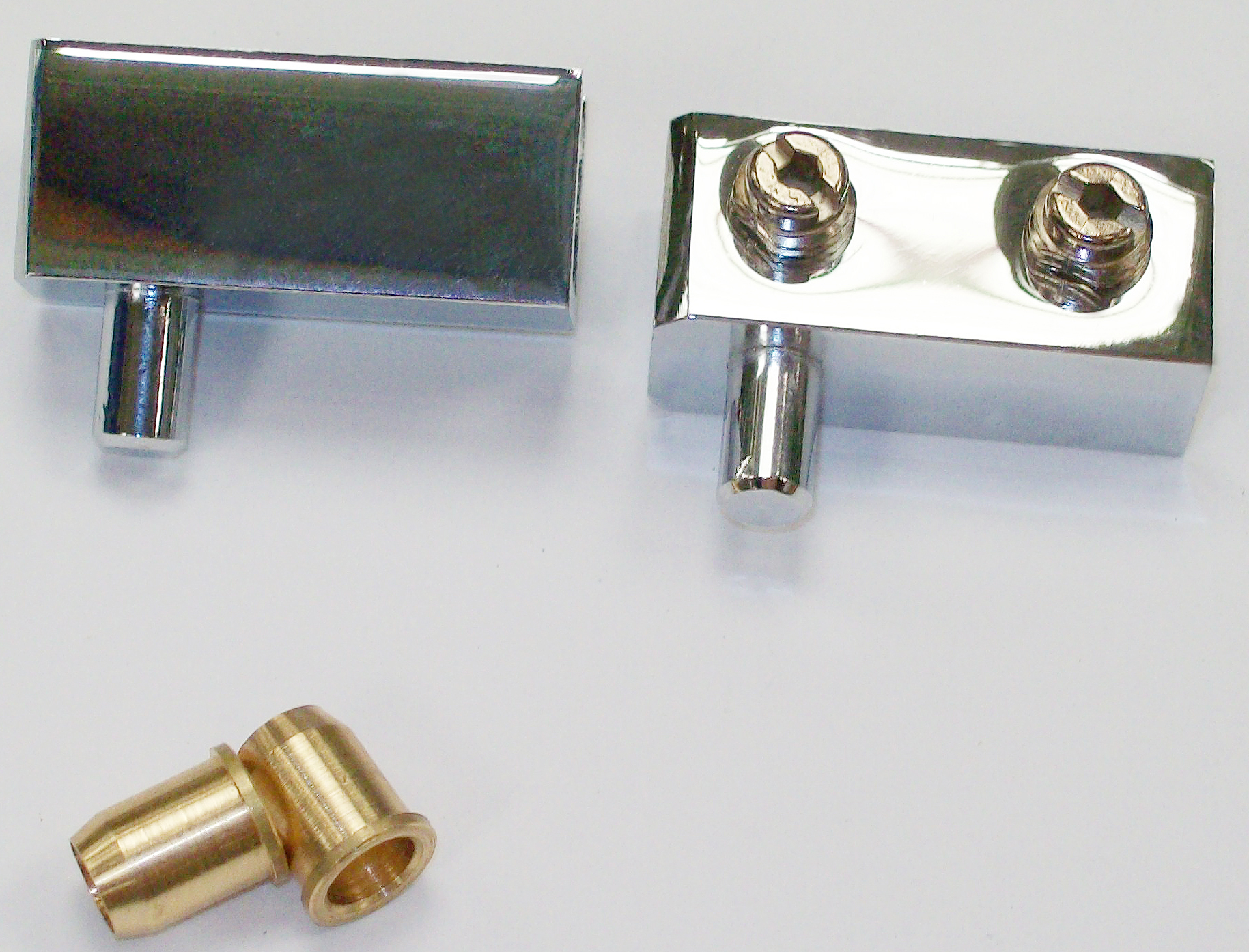

clips on pivot, large model, chromed brass , e= 8(-2)
ADLER brass clips, on dia. 6 mm pivot, large model. e= 8 (-2), a= 15 mm, b= 12 mm, c= 15 mm, d= 35 mm, f= 2 mm. 3 mm space. To determine the maximum allowed thickness of shelving, subtract shim thickness plus 2 mm from clip openinng.
