Sales unit :  set of 4
Packaging dimensions and weight
   Weight   :  121 g
   Height  :  10 mm
   Length  :  80 mm
   Width  :  90 mm
   Volume  :  72 cm3
fitting system

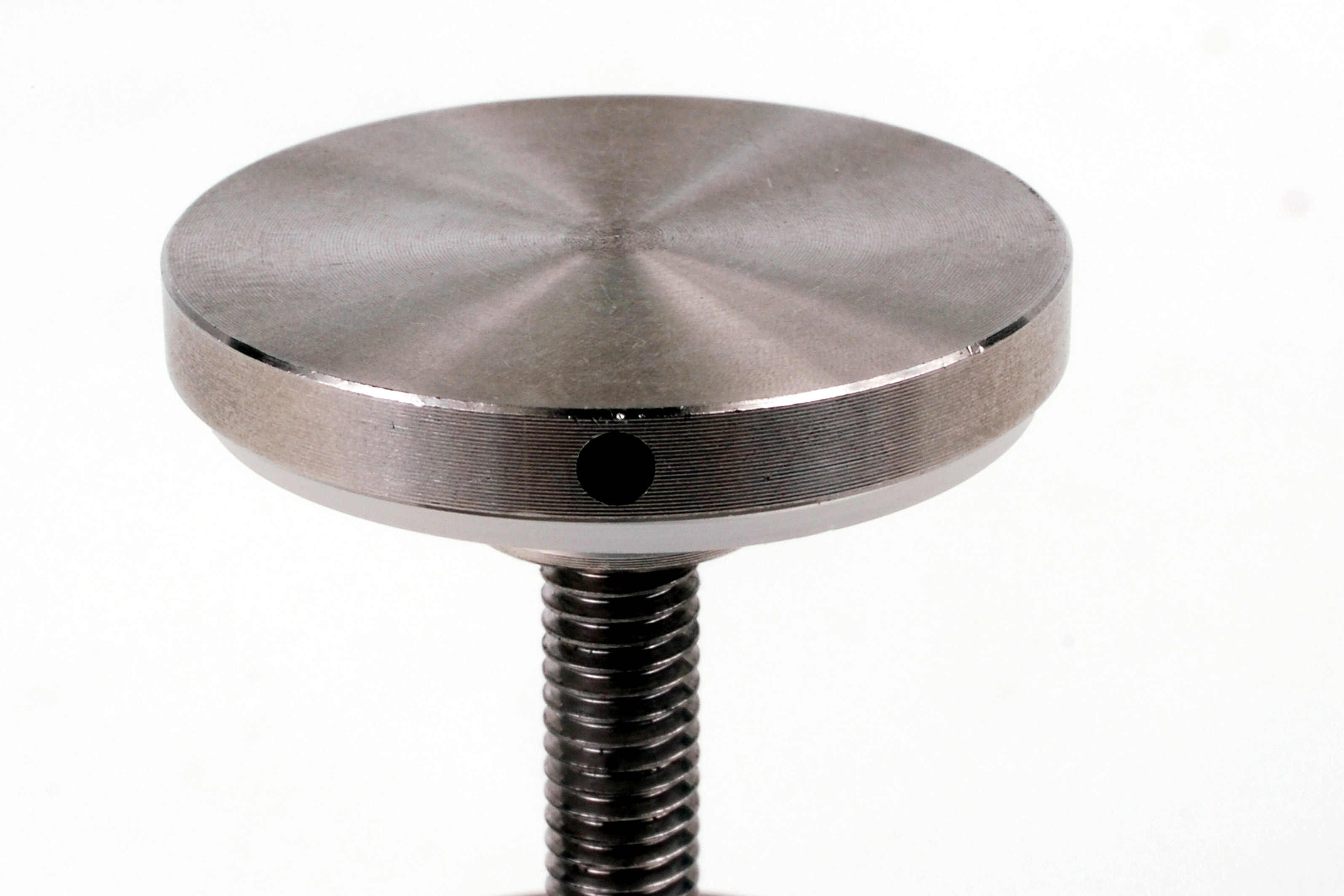

brace - nut-heal, flat, stainless steel with seal washer

Click the image to enlarge it or HERE

52506X

brace - nut-heal, flat, stainless steel with seal washer

Nut head in stainless steel with seal washer. To be used with stainless steel tube Ø 25 (699 63X) and Ø M6 screw (525 10B) for braces. Many assembling configurations are possible (see technical sheet). Glass drilling Ø 16 mm. For a drill under 16 mm starting from 10 mm, use the threaded clip-on rosette 518 047K with its top cap ref 518.
 Fiche produit 525

Attention  To order or ask for a quotation go first to "Customer area"

Associated items list
