Sales unit :  by the unit
Packaging dimensions and weight
   Weight   :  43.000 g
   Height  :  350 mm
   Length  :  790 mm
   Width  :  600 mm
   Volume  :  165.900 cm3
RELDA® band-machines

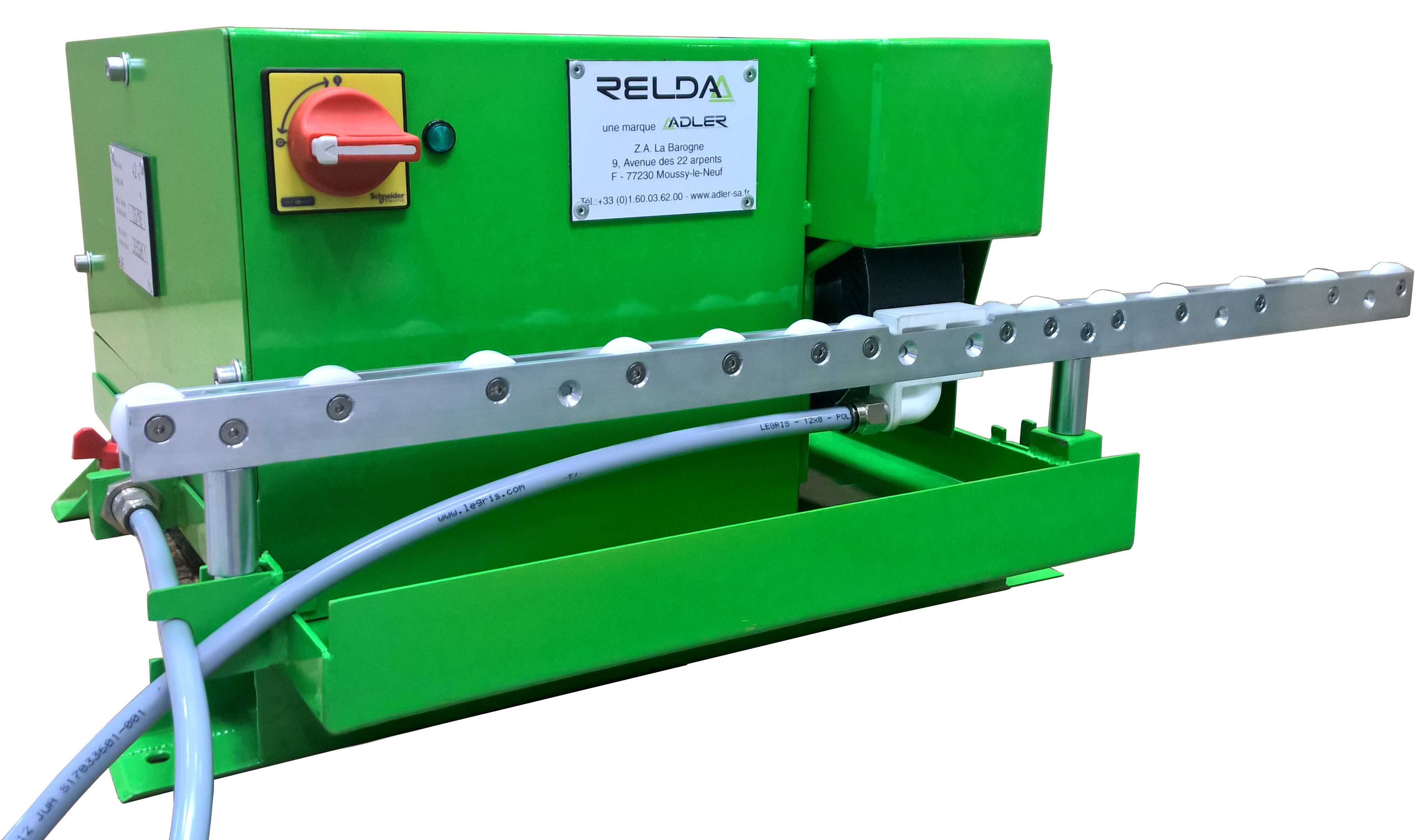

band machine Mini-Diam V2

Click the image to enlarge it or HERE

22430G

band machine Mini-Diam V2

"Mini-Diam V2" diamond band machine for bevelling and edgeworking glass sheets. Uses diamond (or abrasive) and cork bands of 65 x 482 mm. Roller rotation speed: 2800 rpm. 2-position honeycombed expandable rubber roller. Bearing rail: 81 cm with 14 grey rubber covered runners ø 50 mm; optional 2nd rail. Band tensioned by roller expansion due to centrifugal force. Watering jet fed from water supply or pressurised tank; connection via plastic tube with internal ø 8 mm. 50 Hz motor, IP55 protection, 220V single phase. Power: 0.37 kW. Noise level: 70 dbA. Rotating switch operation. CE marking. Size: h: 39 cm; w: 81 cm; d: 54 cm; weight: 46 kg. Supplied with 1 cork polishing band (abrasive and polishing bands, see 145, 150, 151, 152). 2 years warranty for normal use.

Attention  To order or ask for a quotation go first to "Customer area"

Associated items list
