Sales unit :  by the unit
Packaging dimensions and weight
   Weight   :  75.000 g
   Height  :  750 mm
   Length  :  1.600 mm
   Width  :  427 mm
   Volume  :  512.400 cm3

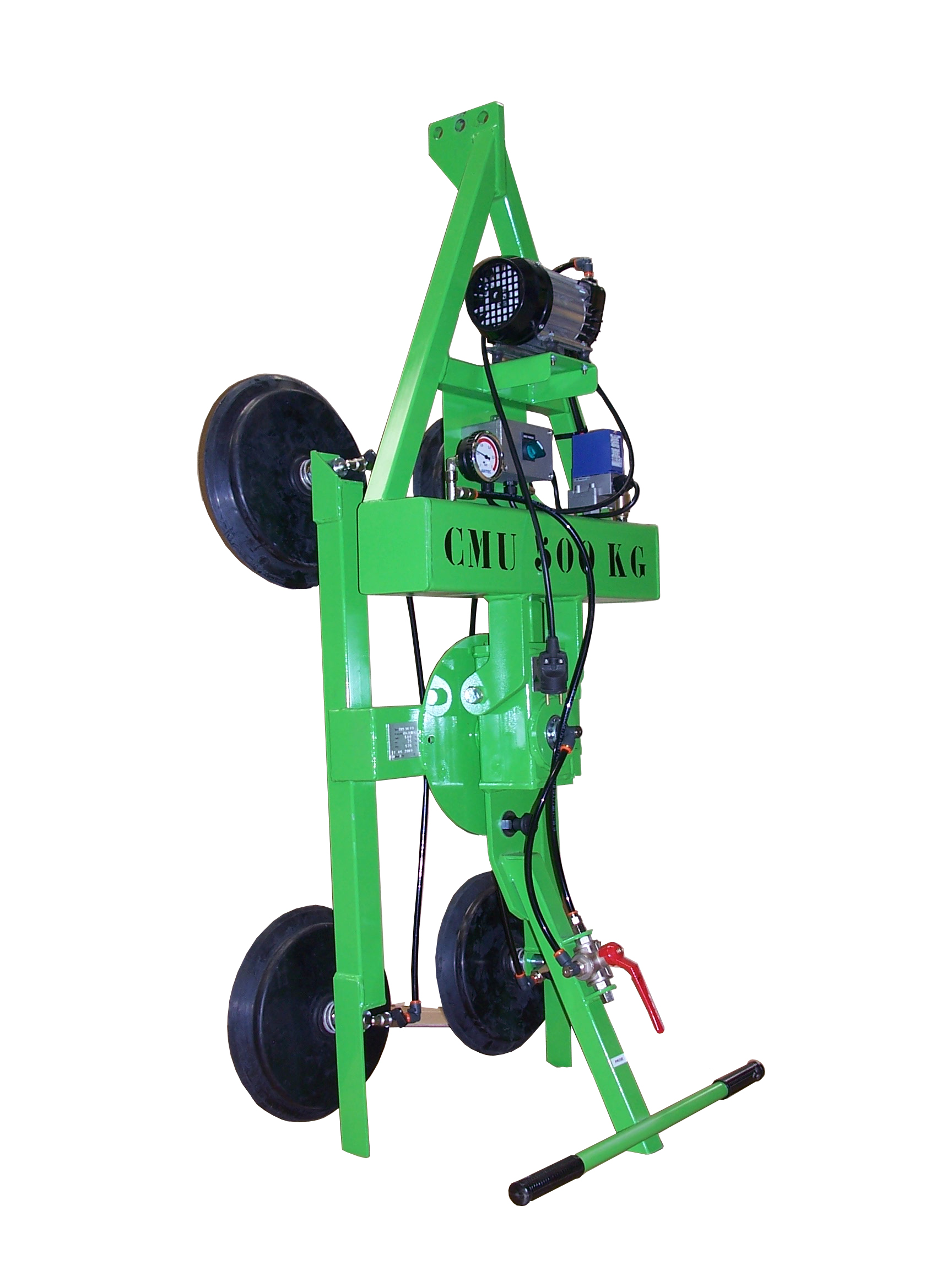

suction lifting beam RELDA®
lifting beam, workshop, main-powered, 240 V, single-phase

Click the image to enlarge it or HERE

21043Y

lifting beam, workshop, main-powered, 240 V, single-phase

Workshop lifting beam, main-powered, 240 V single-phase.
Rugged mechanically welded metal frame with sling shackle adjustable over 3 positions according to the load to be lifted.
Weight at no load : 75 kg
Maximum lifting capacity : 500 kg
Rotation : manual
Tilting : manual, 2 positions : horizontal and vertical, with locking.

Compressed air lifting beam on demand.

Attention  To order or ask for a quotation go first to "Customer area"

Associated items list
