| Sales unit | : | by the unit |
| Packaging dimensions and weight | ||
| Weight | : | 919 g |
| Height | : | 190 mm |
| Length | : | 210 mm |
| Width | : | 170 mm |
| Volume | : | 6.783 cm3 |
)
Click the image to enlarge it or HERE
18452H

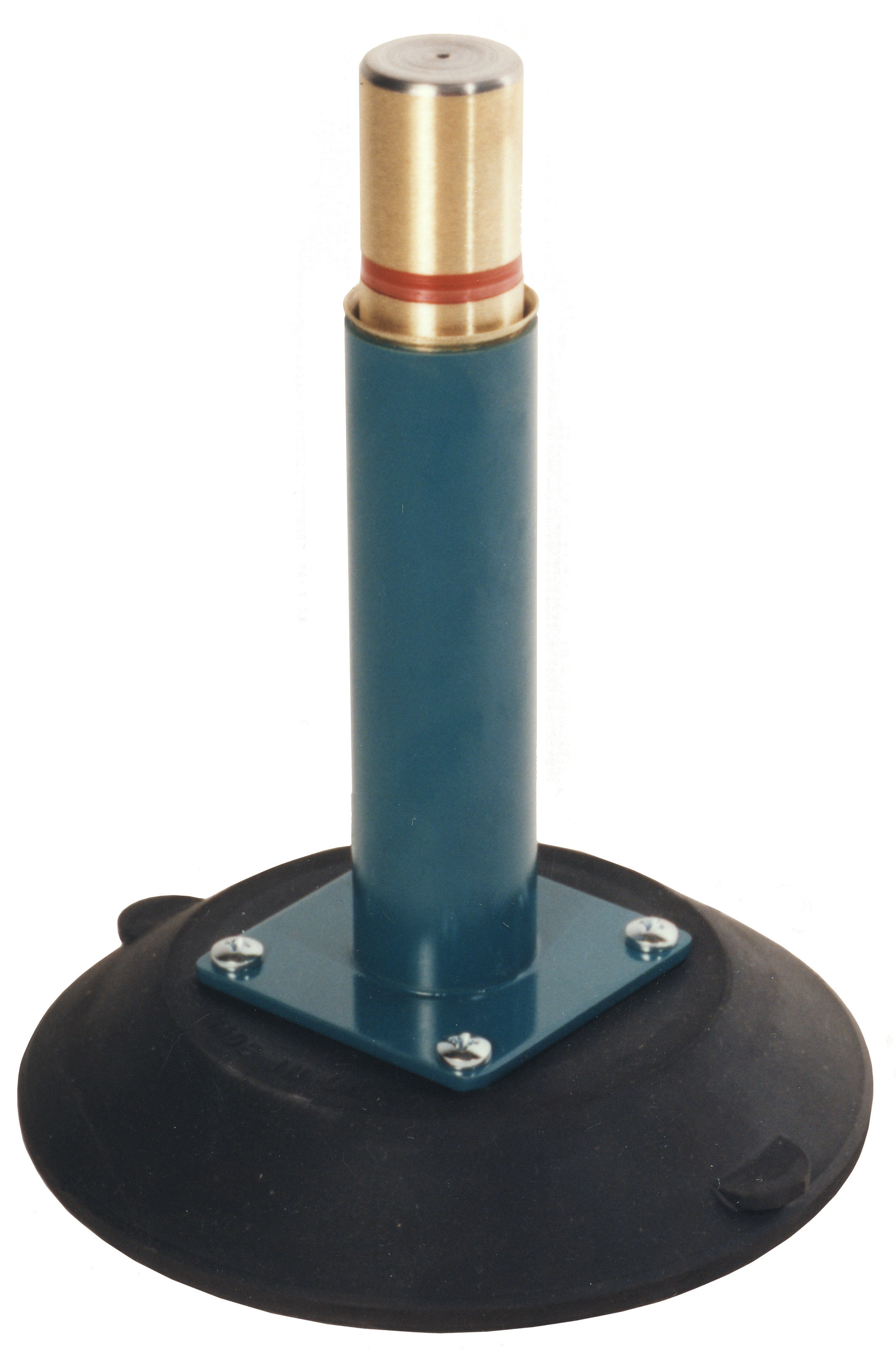

vaccum cup Pow'r Grip, Ø153
Vacuum cup POWR GRIP with durable metal handle.Rubber sole : 153 mm. Ideal design for quick attachment on curved or flat surfaces, e.g. windscreen. Red-line indicator warns user of any vacuum loss. Lift tabs on vacuum pad edges permit instant release. Minimum radius for curved surface: 305 mm. Load capacity: 65 kg (with safety factor of 1,7). Supplied with vacuum pad protector.
Attention: for vertical handling please divide the load mass by 2.
Attention: for vertical handling please divide the load mass by 2.
Attention To order or ask for a quotation go first to "Customer area"
Associated items list
|
18403D suction cup lifter with double swivel heads, antishock plastic body / 18407J plunger assembly with low vacuum audio alarm / 18450F Mounting vacuum cup Ø77 / |
