| Sales unit | : | by the unit |
| Packaging dimensions and weight | ||
| Weight | : | 311 g |
| Height | : | 120 mm |
| Length | : | 120 mm |
| Width | : | 100 mm |
| Volume | : | 1.440 cm3 |
)
Click the image to enlarge it or HERE
18414R

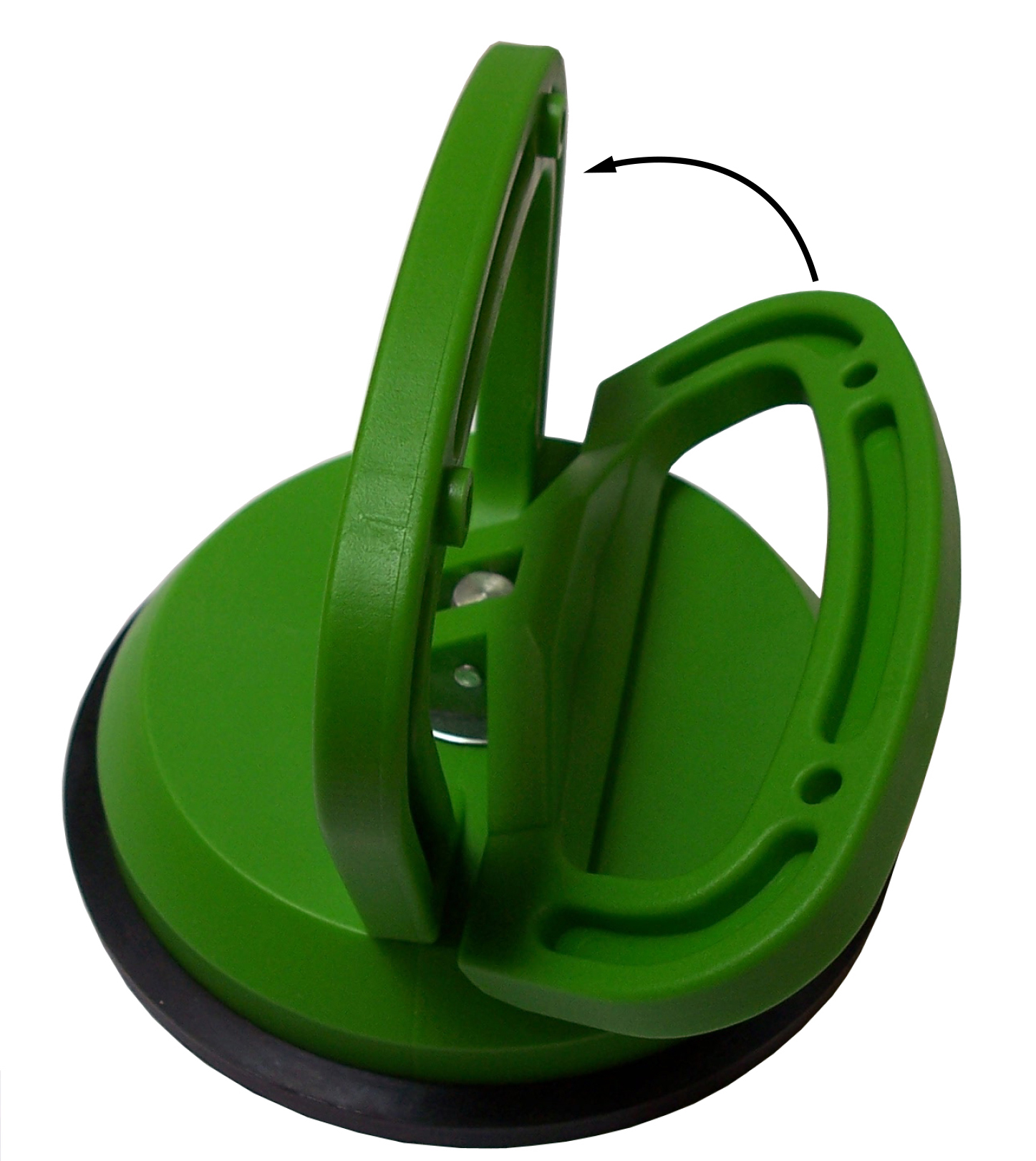

vacuum, Hand-held plastic vacuum cup
Hand-held vacuum cup lifter. Handle specially designed for one-hand use. Suitable to all smooth and non-porous surfaces. Suction cup Ø: 120 mm. Max. load: 40 kg.
Ideal for horizontal handling of glass on a table or conveyor.
Attention: for vertical handling please divide the load mass by 2.
Items of product group 184 are not lifting equipment but manual accessories: they must by no means be implemented between a machine and an element to be lifted. They must be used under human traction directly as handles.
They are excluded from the rules and regulation of EC which apply to machines and equipment (Reference 98/37/EC). As such they do not need to carry the EC stamping.
Please refer to our catalogue to know about maximum loading weight and how to define these values. In case of vertical glass carriage, indicative value for maximum weight has to be divided by 50%.
Ideal for horizontal handling of glass on a table or conveyor.
Attention: for vertical handling please divide the load mass by 2.
Items of product group 184 are not lifting equipment but manual accessories: they must by no means be implemented between a machine and an element to be lifted. They must be used under human traction directly as handles.
They are excluded from the rules and regulation of EC which apply to machines and equipment (Reference 98/37/EC). As such they do not need to carry the EC stamping.
Please refer to our catalogue to know about maximum loading weight and how to define these values. In case of vertical glass carriage, indicative value for maximum weight has to be divided by 50%.
Attention To order or ask for a quotation go first to "Customer area"
