Sales unit :  by the unit
Packaging dimensions and weight
   Weight   :  275 g
   Height  :  80 mm
   Length  :  105 mm
   Width  :  60 mm
   Volume  :  504 cm3
rules, topographical instruments

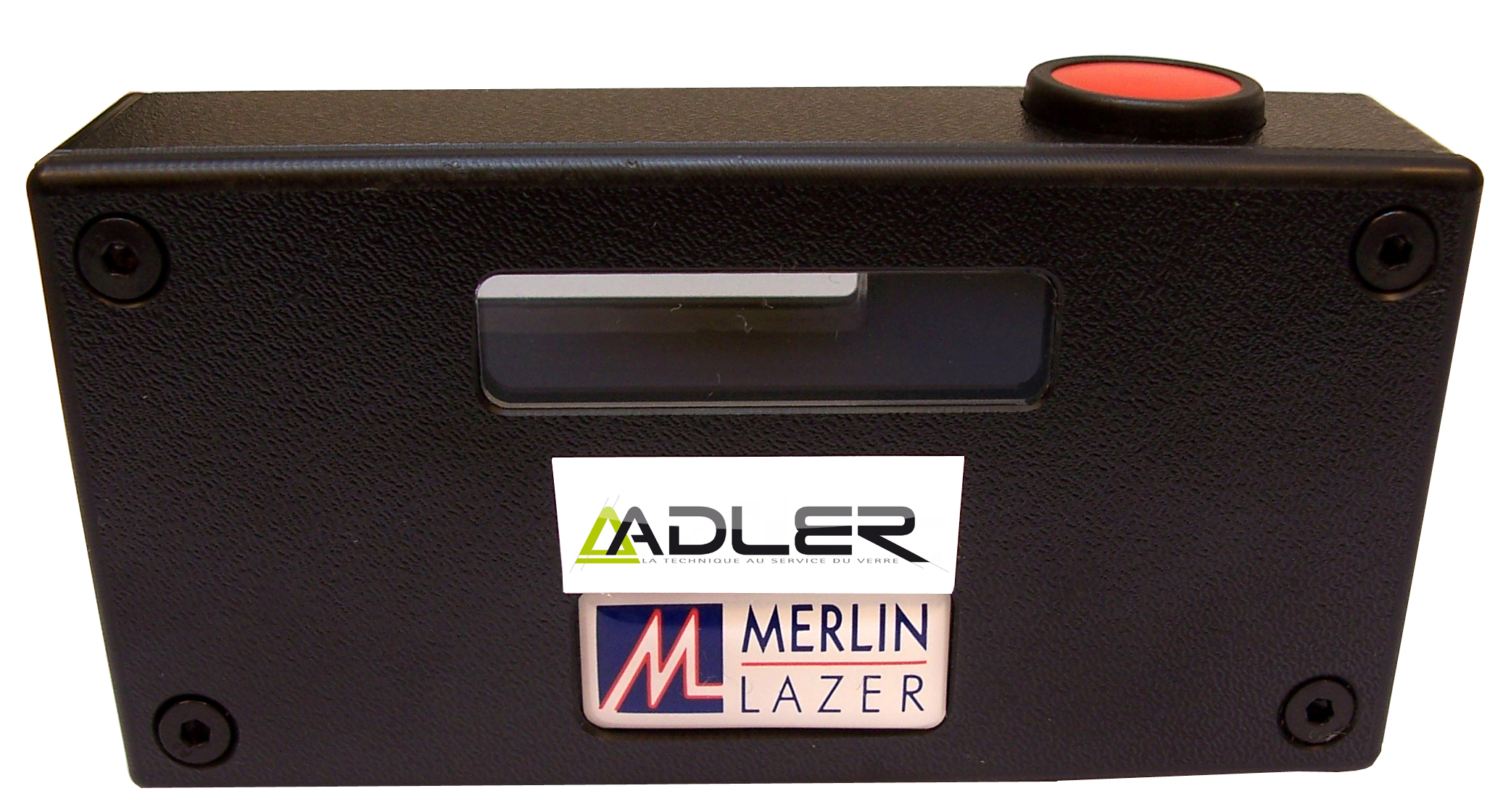

Merlin Lazer, toughened glass indicator

Click the image to enlarge it or HERE

18361J

Merlin Lazer, toughened glass indicator

"""Merlin Lazer"" portable instrument for easy and non-destructive measurement of thicknesses of rebated glass, glass and air gaps in double or triple glazing, double-layer and multi-layer glass panels. The instrument operates on a principle similar to that used by the pachometer (Réf.18333C) but readings are much easier and much more accurate, as the refracted and reflected light source is actually a laser beam. For glass thicknesses up to 65 mm and air gaps up to 38 mm. Two other gauges can be used to complete identification of a glass panel and: (1) indicate whether a glass panel (or each of the panels in a double glazed panel) is toughened or otherwise - (2) detect whether a glass panel (or one of the glass panels in a double glazing assembly) is coated with a low emissivity coating.
Supplied with battery loader.

Not for sale in Germany."

Attention  To order or ask for a quotation go first to "Customer area"

Associated items list
