Sales unit :  by the unit
Packaging dimensions and weight
   Weight   :  4.500 g
   Height  :  10 mm
   Length  :  300 mm
   Width  :  180 mm
   Volume  :  540 cm3
door closer and locks "SEVAX" range

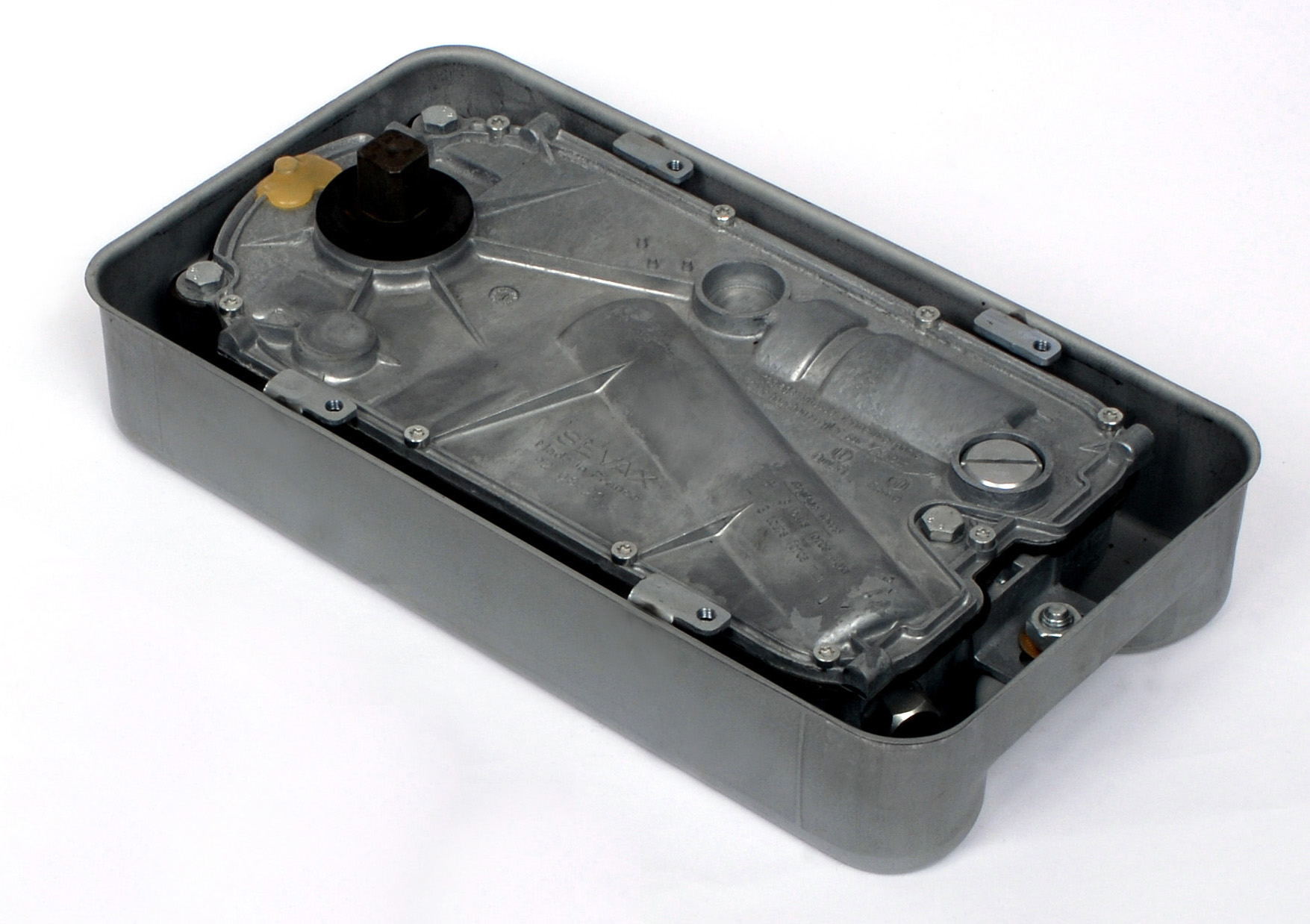

door-closer Sevax F3, model TSP-CE, 105°

Click the image to enlarge it or HERE

73012M

door-closer Sevax F3, model TSP-CE, 105°

Sevax ground door spring unit, model TSP, with electrical contact (CE), for 6 to 48 V buzzer or chime (on request). Service temperature: 20° to + 40°C - Stop at 105° (with delivery time). TSA ground door spring unit (dual action) , with 3-way positioning: sideways, lengthways and heightways (-2 à +5 mm) in a seal-fitted housing; adjustable closure torque from 15 to 40 Nm. Dimensions (L x l x h): 289 mm x 156 x 65.

Attention  To order or ask for a quotation go first to "Customer area"

Associated items list
