21701P

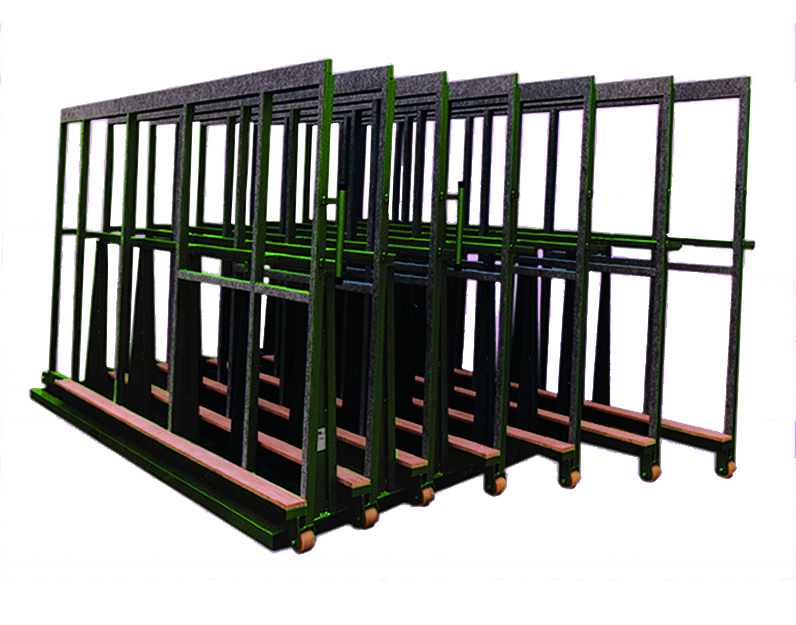

rack, glass storage 5 racks right or left (on request)
Rack for glass storage:
• open top,
• horizontal crossbars on the half-width for vertical storage of narrow glass sheets,
• drawers mounted on ball bearings:
one front Rack for glass storage:
• open top,
• horizontal crossbars on the half-width for vertical storage of narrow glass sheets,
• drawers mounted on ball bearings:
one front wheel and one rear wheel for easy drawer removal;
• lateral guidance by 6 ball bearings, placed at 2/3 height ensures good drawer stability.
Characteristics:
• height x depth x width: 1950 x 1550 x 2900 mm
• platform width: 90 mm
• weight of structure: 980 kg
• storage capacity / drawer: 800 kg
• construction: uprights 40 x 40 x 2 mm / crossbars 80 x 40 x 3 mm / frame 60 x 60 x 3 mm
• max. length of glass sheets: 2550 mm
• uprights covered with felt.
Must be specified at time of order:
>br>(1) Depending on the workshop's configuration, the platforms can be set up with inclination to the right or to the left.
(2) Intermediate platforms can be added for greater storage of small glass sheets.
Additional drawer for glass storage rack, limited to 4 drawers per extension 217 01P in proportion 217 02Q.
